Vacuum adsorption table for CNC gantry milling machine is a practical workholding solution that solves the biggest clamping headaches for shop floor machinists. If you regularly process thin plates, large-format metal sheets, or non-ferrous workpieces on a gantry mill, you’ve likely struggled with magnetic chuck limitations and mechanical clamp damage — this tool fixes both issues without complicated setup or extra labor.
We run these vacuum tables daily for face cutting operations, especially for clients targeting the Korean market and overseas Korean-owned factories, where consistent plate quality and tight tolerances are non-negotiable. This guide is written from a hands-on machinist’s perspective, with no empty jargon, just real-world knowledge you can apply immediately.
What Is a Vacuum Adsorption Table for CNC Gantry Milling Machine?
A vacuum adsorption table for CNC gantry milling machine is a flat, rigid workholding platform that uses negative air pressure to hold workpieces securely in place.
Unlike magnetic chucks that rely on magnetic force, it uses suction spread evenly across the table surface. The table has a grid of small holes or channels connected to a vacuum pump, which pulls air out to create a tight seal between the table and the workpiece.
It’s designed specifically for CNC gantry mills, matching table sizes like 1000×2000mm and 1500×2000mm — common sizes for metal plate processing. It works on steel, aluminum, copper, plastic, and patterned plates that magnetic chucks can’t hold.
This is not a fancy aftermarket accessory; it’s a practical workholding upgrade built for heavy-duty, daily machining. It fits standard gantry mill tables and supports loading capacities under 4 tons, perfect for most plate cutting jobs.
Top 2 Common Questions About the Vacuum Adsorption Table for CNC Gantry Milling Machine
1. Will a vacuum adsorption table for CNC gantry milling machine hold thin or warped plates securely during cutting?
Yes, when set up correctly, a vacuum adsorption table for CNC gantry milling machine holds thin and slightly warped plates far better than magnetic or mechanical clamping.
The even suction pressure across the entire surface prevents warping and eliminates uneven clamping force. For plates up to 300mm thick and 1.5m×2m in size, it maintains consistent holding power without shifting during face cutting.
For severely warped plates, we always recommend a pre-leveling process first — this improves results and keeps tolerances tight. You can learn more about proper machine setup for consistent flatness in our complete guide to CNC Gantry Milling Machine Bed Leveling and Precision Calibration, a critical foundational step for accurate vacuum table machining.
2. Is the vacuum system reliable for long production runs, and is it hard to maintain?
A Vacuum adsorption table for CNC gantry milling machines is extremely reliable for long shifts and daily production, and maintenance is simple — ideal for busy shops.
The system only requires regular cleaning of suction holes to prevent chip buildup and occasional checks of the vacuum pump and air lines. Most quality tables use sealed, coolant-resistant components that follow industrial durability standards for machine tool workholding, ensuring long-term reliability in busy shop environments.
Daily maintenance takes less than five minutes, and breakdowns are rare. Unlike complex hydraulic systems, there are no messy leaks or high-wear parts to replace frequently.
Key Benefits of Using a Vacuum Adsorption Table for CNC Gantry Milling Machine
Switching to a vacuum adsorption table for CNC gantry milling machine brings consistent, measurable benefits for real machining work.
Works for all material types — holds ferrous and non-ferrous metals, including aluminum, copper, and patterned steel, which magnetic chucks can’t grip.
No workpiece damage — no clamp marks, no magnetic indentations, and no warping on thin plates, cutting down scrap rates significantly.
Full surface access — no clamps or fixtures blocking cutting tools, allowing full face milling and edge cutting in one pass without repositioning.
Fast setup time — load the plate, activate the vacuum, and start cutting; no manual clamping or adjustment needed, saving labor time per job.
Consistent precision — even holding pressure keeps flatness tolerances tight, which is critical for the Korean market and overseas Korean factory clients.
Step-by-Step Setup: Using a Vacuum Adsorption Table for CNC Gantry Milling Machine
Step 1: Prepare the Table and Workpiece
Start by cleaning the vacuum table surface thoroughly with a lint-free cloth. Remove all metal chips, coolant, and debris from suction holes to ensure a strong seal.
Wipe the bottom surface of the workpiece clean as well. Any dirt or chips on either surface will weaken suction and cause inconsistent holding.
Step 2: Position the Workpiece on the Table
Place the workpiece flat on the vacuum adsorption table for CNC gantry milling machine, centering it to cover as many suction holes as possible.
Make sure the plate lies evenly without large gaps. For slightly warped plates, apply gentle pressure while activating the vacuum to help the seal form properly.
Step 3: Activate the Vacuum System
Turn on the vacuum pump and let it build full negative pressure. Wait 10-15 seconds to ensure the workpiece is fully secured.
Check for firm holding by gently trying to shift the plate manually. If it moves, turn off the vacuum, re-clean the surface, and try again.
Step 4: Set Up Tool Path and Start Machining
Program your standard face cutting tool path, with no need to adjust for clamps or obstacles.
Run the machine at normal cutting speeds; the vacuum holding power is strong enough for heavy roughing and precision finishing cuts.
Step 5: Release the Workpiece and Clean Up
Once machining is complete, turn off the vacuum pump and release the pressure.
Remove the finished workpiece, then clean the table again to remove chips and coolant for the next job.
3 Real Shop Results: Vacuum Adsorption Table for CNC Gantry Milling Machine
1. Improved Flatness Tolerance for Large Steel Plates
Using the vacuum table on 1.5m×1m, 4.5mm patterned steel plates reduced the height difference from 1.8mm (with magnetic chuck) to 0.3mm.
This met strict client tolerance requirements and eliminated rework and scrap, making it ideal for Korean market customers focused on consistent plate quality.
2. Expanded Material Capability Without Extra Equipment
A Korean-focused client was able to machine both steel and aluminum plates on the same gantry mill, no extra clamping systems needed.
This cut down setup time by 40% and allowed them to take on mixed-material orders they previously had to turn down, boosting sales and customer satisfaction.
3. Lower Scrap Rate and Faster Production
Shops using this vacuum table reduced scrap rates from 8-10% to under 1% for thin plate jobs.
Production speed increased by 25% due to faster setup and uninterrupted cutting, with less downtime for clamping adjustments and part rework.
This simple, reliable workholding setup has become a staple for our economical gantry mill models, aligning perfectly with the needs of cost-conscious shops competing in the Korean machining market. It delivers consistent results, lowers operational costs, and makes everyday machining smoother for hardworking machinists.

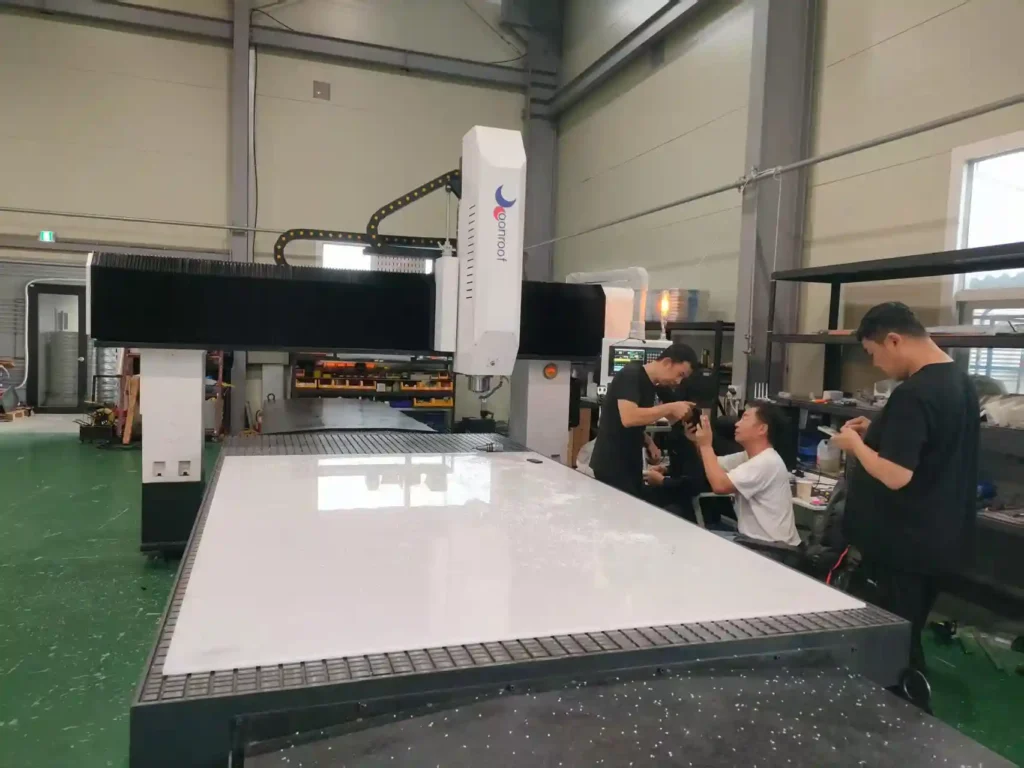

In actual processing, the plastic sheet is firmly fixed on the workbench by the vacuum adsorption table of the CNC gantry milling machine. It stays completely stable without shifting or warping, even for thin and light plastic plates, perfectly solving the clamping problems that magnetic chucks and mechanical clamps cannot handle for non-metallic materials.
