Introduction: Why This CNC Gantry Mill Selection Guide Matters
CNC Gantry Mill Selection Guide is not just a technical topic — it’s a decision that can directly affect your factory’s profitability for the next 10–15 years. A wrong choice doesn’t just waste upfront capital;
it creates ongoing bottlenecks, unplanned downtime, and missed business opportunities that compound over time.
I’ve worked with mold shops, heavy steel processing plants, and equipment manufacturers who thought buying a bigger or more expensive machine would automatically solve their production problems. It rarely works that way. One mold shop splurged on a high-speed Siemens-equipped mill for heavy mold steel cutting, only to struggle with constant spindle overheating and steep operator training curves. Another steel fabricator bought a compact machine to save space, only to turn down a $500,000 annual contract because their mill couldn’t handle the 5-meter structural beams.
What really matters is matching the machine to your real machining conditions — the parts you cut, the materials you use, the shifts you run, and the tolerances you need to hit. There’s no “one-size-fits-all” gantry mill, and chasing brand prestige or over-the-top specs is a surefire way to waste money.
In this CNC Gantry Mill Selection Guide, I’ll walk you through the same evaluation process we use when helping customers choose a gantry mill. No marketing talk, no vague jargon, no sales pitches. Just practical shop-floor logic built on 12 years of hands-on experience running and advising on these machines.
CNC Gantry Mill Selection Guide:Step 1 – Start with Your Workpiece, Not the Catalog
Most buying mistakes for CNC gantry mill selection start here. People compare brands, control systems, or prices before defining what they actually want — and this backwards approach sets them up for failure.
Before you look at any machine specification, grab a notebook and write down five non-negotiable details about your work:
- Maximum part length, width, and height (measure the absolute largest part you’ll ever cut)
- Average part size (the parts you’ll run 80% of the time)
- Material type (steel, mold steel, aluminum, cast iron, or composites)
- Daily production hours (1 shift, 2 shifts, or 24/7 continuous running)
- Required tolerance (±0.01mm for molds, ±0.05mm for structural parts, etc.)
Practical Rule For A CNC Gantry Mill Selection We Always Follow
Measure your largest workpiece and add 15–20% extra travel in the X, Y, and Z axis. This is non-negotiable for any serious shop.
Why the buffer? Because fixtures, clamps, tool holders, and even small safety margins all take up critical space. If you skimp on travel, you’ll find yourself unable to fully secure large parts or maneuver tools without hitting the machine’s limits.
Real Example:
If your largest mold base is 4000 mm long, you should consider a machine with at least 4500 mm X-axis travel. A 4000 mm X-axis might technically fit the part, but you’ll have no room for a 300 mm fixture plate or a side clamp — forcing you to compromise on part stability, which leads to poor cuts and scrapped workpieces.
Buying too small limits future orders and traps you in a cycle of outsourcing. Buying too large, on the other hand, increases upfront cost, wastes valuable floor space, and jacks up power consumption unnecessarily. For a small factory, a 5-meter mill instead of a 4.5-meter model can add $10,000+ in electricity costs per year — money that could go to new tools or labor.
CNC Gantry Mill Selection Guide:Step 2 – Structure and Rigidity: Decide Cutting Performance
The structure of the machine determines its rigidity, and rigidity determines cutting stability — the single most important factor in consistent part quality and tool life. You can have the best spindle and control system in the world, but a flimsy frame will make your cuts wander and your tools dull in half the time.
There are two common guideway structures in gantry mills, and each is built for a specific job — there’s no “better” option, only the right one for your work.
Linear Guideway Structure
Linear guides use ball bearings or rollers to create low-friction movement. They’re fast, precise at high speeds, and easy to maintain. They shine for aluminum machining, light steel profiling, or any job where speed and efficiency are more important than brute force.
For example, a shop cutting aluminum aerospace panels will benefit from linear guides — they can move the gantry at 20 m/min or more, reducing cycle times by 30% compared to box ways.
Box Way Structure
Box ways (or sliding guides) use a cast iron-on-cast iron contact surface with a lubrication film, creating unmatched rigidity. They absorb vibration better, handle heavy cutting forces, and hold up to years of deep roughing passes. They’re the gold standard for mold steel (like P20 or H13), heavy plate components, or any job that involves aggressive material removal.
If you mainly process 100mm-thick mold steel blocks with deep roughing cuts, a box way structure is often more stable. I’ve seen linear guide mills struggle with these jobs — the constant vibration leads to chipped inserts, poor surface finishes, and even guideway wear after just 6 months of heavy use.
For industrial machinery standards and safety principles that govern these structural designs, you can refer to the ISO official organization. Their standards for machine tool rigidity and safety are the global benchmark, and any reputable manufacturer will design their machines to meet or exceed them.
CNC Gantry Mill Selection Guide:Step 3 – Spindle Matching Is More Important Than Brand
The spindle is the heart of your gantry mill, but many buyers overspend here because they think “higher RPM” or “higher power” always means better performance. This is one of the costliest myths in the industry.
A 15,000 RPM spindle sounds impressive, but if you’re cutting 50mm-deep slots in steel all day, that high speed is useless — and you’ll pay a premium for a feature you’ll never use. The key is to match spindle performance to your real workload, not to a spec sheet.
CNC Gantry Mill Selection For Heavy Steel Cutting (80% of Your Work)
Opt for a BT50 spindle every time. BT50 spindles deliver high torque at low RPM (typically 800–3000 RPM), have a stronger motor (15–22 kW or more), and offer unbeatable stability for deep cuts and roughing passes. They’re built to take abuse, and their tool-holding force reduces the risk of tool pullout during heavy machining.
CNC Gantry Mill Selection For Aluminum or Light Machining (80% of Your Work)
A BT40 spindle is the better choice. BT40 spindles hit higher RPM (up to 10,000+ RPM), accelerate faster, and are lighter, which means the gantry can move more quickly. This cuts cycle times for aluminum parts, where high speed is key to a smooth surface finish.
Middle Ground:
If 80% of your work is medium steel machining (think 20mm-deep cuts on 50mm plates), you do not need an extreme high-speed spindle. A mid-range BT50 (4000 RPM max) will balance torque and speed perfectly, saving you $5,000–$8,000 upfront without sacrificing performance.
If you’d like to understand spindle types in more depth — including torque curves, tool compatibility, and maintenance tips — you can read our internal guide here: 👉 bt40-vs-bt50-spindle-guide.
CNC Gantry Mill Selection Guide:Step 4 – Control System and Reliability
The control system is the brain of your CNC gantry mill selection guide process — it dictates how the machine runs, how easy it is to operate, and how much downtime you’ll deal with over the years. When choosing a system, three factors matter more than any other: stability, operator familiarity, and support availability.
Common systems in the gantry mill market each serve a distinct purpose:
- FANUC: The workhorse of heavy industrial applications. It’s nearly unbreakable, resistant to electrical interference, and every machinist worth their salt knows how to use it. For 24/7 shops, FANUC is the gold standard.
- SIEMENS: Unbeatable for contouring performance and high-precision 3D machining. It’s the top choice for mold shops cutting complex curved surfaces, but it has a steeper learning curve.
- SYNTEC / GSK: Budget-friendly solutions perfect for small shops or simple 2D machining. They’re easy to program for basic jobs and have low-cost spare parts, but they lack the stability for 24/7 heavy cutting.
In reality, downtime costs far more than the price difference between a FANUC and a budget system. A single unplanned shutdown for a control system error can cost a shop $2,000–$5,000 in lost production — and that’s before you factor in repair costs.
The smartest choice? Pick a system your operators already understand. If your team has 10 years of FANUC experience, switching to SIEMENS will require weeks of training and lead to human error (like programming mistakes) in the early days. For a 24/7 factory, reliability should always be prioritized over minor upfront savings.
CNC Gantry Mill Selection Guide:Step 5 – Don’t Ignore Auxiliary Systems
This is where many factories try to save money — and later regret it. Buyers fixate on travel size and spindle power, but auxiliary systems make or break a machine’s long-term reliability and efficiency.
Auxiliary systems include:

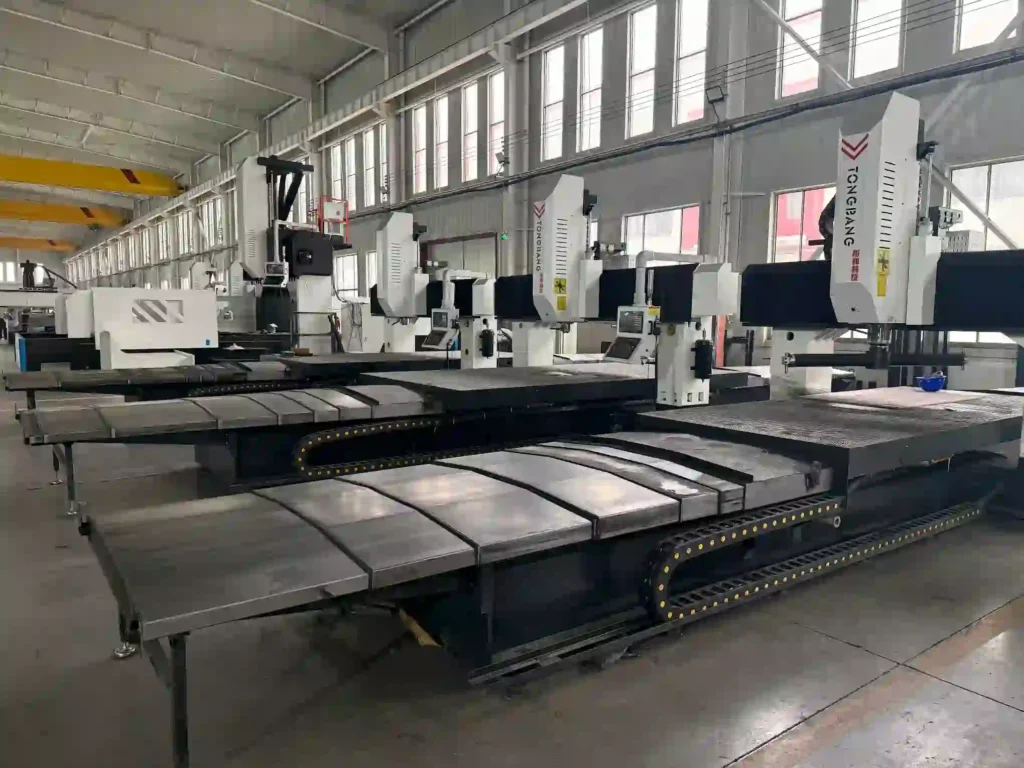

- Full enclosure protection (keeps chips and coolant off guides and operators)
- Automatic lubrication system (prevents dry running and wear on guides/ball screws)
- High-capacity cooling system (spindle and cutting fluid cooling)
- Heavy-duty chip conveyor (removes chips quickly during heavy cutting)
- Premium ball screws and linear guides (from brands like THK or HIWIN)
In heavy cutting environments, poor chip evacuation is a death sentence for your machine. If chips pile up around the workpiece or in the guideways, they cause three major problems: overheating (which warps workpieces and damages the spindle), guideway wear (leading to lost accuracy), and increased maintenance (you’ll spend hours cleaning instead of producing).
A gantry machine is not just a big frame and a spindle — it is a complete machining system. When evaluating a supplier, don’t only ask about travel size and spindle power. Ask about the brand of the ball screws, the capacity of the chip conveyor, and the design of the cooling system. A $1,000 upgrade to a heavy-duty chain chip conveyor will save you $10,000 in maintenance and downtime over 5 years.
Common Buying Mistakes In CNC Gantry Mill Selection We See Frequently
| Mistake | Real Consequence | How to Avoid |
|---|---|---|
| Buying too small | Cannot accept larger orders, constant outsourcing | Add 15–20% travel margin to largest workpiece |
| Overspecifying | Slow ROI, wasted upfront cost, unused features | Match specs to 80% of your core workload |
| Ignoring auxiliary systems | Frequent breakdowns, high maintenance costs | Evaluate full configuration, not just core specs |
| No machine test | Unexpected vibration, poor accuracy, misaligned parts | Request a real cutting demo with your own workpiece |
Real Case from a Mold Manufacturer
A mid-sized mold shop in Jiangsu approached us with a critical problem: their existing 3m X-axis gantry mill couldn’t handle their largest mold bases (3.8m long), forcing them to outsource 30% of their work to a competitor — costing them $120,000 in annual profits.
Instead of recommending the largest model in our lineup (a 5m X-axis mill with a premium price tag), we used our CNC gantry milling machine selection guide to analyze their actual needs:
- Required travel: 4.2m (3.8m part + 10% buffer for fixtures)
- Cutting material: P20 and H13 mold steel (heavy roughing, high precision finishing)
- Spindle: BT50 high-torque (18.5 kW) for deep roughing
- Control system: FANUC 0i-MF Plus (their operators already knew it)
- Upgrades: High-capacity flood cooling and full steel enclosure (to handle mold steel chips)
After installation, the results were transformative:
- 30% investment saved compared to the oversized premium option
- 25% production capacity increase (no more outsourcing)
- 40% reduction in tool wear (thanks to better cooling and rigidity)
The right CNC gantry mill selection is not the most expensive one. It is the one that matches your machining reality — and this shop’s success proves that thoughtful selection beats overspending every time.
Final Thoughts from a Practical Engineer
When we talk about the CNC gantry mill selection guide, we are really talking about risk management. A gantry mill is a 10–15 year investment — it’s not a tool you replace every year, so getting it right the first time is critical.
Buying too small limits your growth and traps you in a cycle of outsourcing. Buying too large increases financial pressure and wastes resources. Buying the wrong configuration leads to constant downtime, scrapped parts, and frustrated operators.
But if you start from your workpiece (the foundation of every good decision) for a CNC Gantry Mill Selection, analyze structure and rigidity for your cutting style, match the spindle to your core workload, choose a reliable control system your team knows, and evaluate auxiliary components carefully — you reduce risk dramatically.
This CNC gantry mill selection guide isn’t about overcomplicating things; it’s about making a decision based on facts, not fear or marketing hype. For us shop-floor engineers and machinists, that’s the only way to buy a machine that will earn its keep for years to come.
