A CNC Gantry milling machine is a high-precision CNC machine tool widely used across various mechanical processing fields. They demonstrate exceptional performance and advantages, particularly in machining large and complex components. By integrating CNC systems with milling cutters, these machines achieve precise cutting operations while offering high efficiency, stability, and automation.
This article provides a detailed overview of the CNC gantry milling machine, covering its definition, structural features, operating principles, application domains, and suitable scenarios to help readers gain a comprehensive understanding of this vital machining equipment.
What is a CNC Gantry Milling Machine?

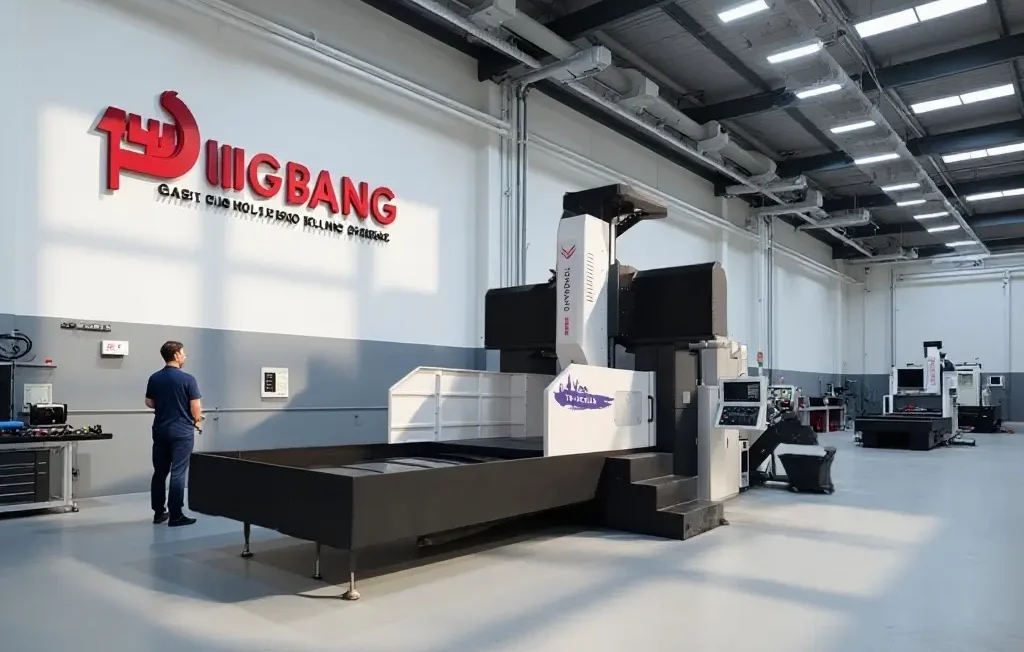

A CNC gantry milling machine is an advanced machining device that integrates a gantry-type machine structure with computer numerical control technology. Its defining feature is a fixed crossbeam, with the worktable capable of multi-directional movement—up/down, left/right—along the beam. This structural design enables it to handle large workpieces, making it particularly suitable for machining large, complex components. Compared to conventional CNC milling machines, the CNC Gantry milling machine demonstrates superior rigidity, precision, and stability.
The CNC system serves as the machine’s core, controlling its movements through pre-programmed machining sequences to achieve automated processing. This reduces human operational errors and enhances machining efficiency. Its milling operations are accomplished through the contact between a high-speed rotating cutting tool and the workpiece, performing tasks such as cutting, drilling, and milling.
What applications are CNC Gantry milling machines suitable for?
The structural design of CNC gantry milling machines is unique, featuring several notable characteristics:
1. Gantry Structure: The main body adopts a “gantry” configuration, allowing the worktable and longitudinal slide to adjust freely vertically. This structure excels at handling large-sized, heavy workpieces and is particularly suited for complex machining tasks.
2. Large Work Table Area: Compared to conventional CNC gantry milling machines, gantry-type CNC milling machines feature a larger work table, accommodating oversized workpieces to enhance machining flexibility and efficiency.
3. High Rigidity and Stability: The gantry and column design provide exceptional rigidity, enabling the machine to perform high-precision, heavy-load machining tasks while maintaining stable performance even during extended operation.
4. Precise CNC System: Equipped with high-precision CNC systems, these machines enable simultaneous multi-axis coordination through program control. This facilitates complex 3D machining while ensuring accuracy and efficiency.
Working Principle of a CNC Gantry Milling Machine
The working principle of CNC gantry milling machines relies on the coordinated operation of the CNC system, drive system, and mechanical transmission system. First, the CNC system sets the program according to machining requirements to control machine movement. After program input, the CNC system directs the drive system to control the movement of each axis—including the X, Y, and Z axes—and precisely drives the cutting tool to engage with the workpiece through the transmission mechanism.
During machining, the milling cutter rotates at high speed, performing precise cutting along a predetermined path to progressively shape the workpiece into the desired form. Utilizing advanced servo motors and high-precision sensors, the CNC gantry milling machine ensures machining accuracy, tool life, and surface quality.
Application Fields of CNC Gantry Milling Machines
Gantry CNC milling machines find extensive applications across numerous industries, particularly in sectors requiring the machining of large, complex components. Key application areas include:
1. Aerospace Industry: Given the intricate geometries and stringent precision demands of aerospace components, gantry CNC milling machines are widely employed in this field. They enable the precise machining of aircraft parts, spacecraft components, and similar elements.
2. Automotive Manufacturing: In automotive production, especially for engine components, chassis parts, and bodywork machining, gantry CNC milling machines play a crucial role. Their high precision and efficiency meet the demands of mass production and complex part processing.
3. Mold Manufacturing: Gantry CNC milling machines are highly favored in mold fabrication, particularly for large-scale molds. Their stability and high rigidity ensure mold precision and durability.
4. Heavy Machinery Processing: For machining components of heavy machinery like presses and cranes, gantry CNC milling machines provide substantial assistance, enabling the production of large-sized, high-precision parts.
5. Shipbuilding Industry: During ship construction, gantry CNC milling machines process hull components, including large compartments and bridges, ensuring precision and machining efficiency.
Applications of Gantry CNC Milling Machines
Gantry CNC milling machines are primarily suited for the following scenarios:
1. Large Workpiece Machining: When processing oversized and heavy components, the high load capacity and large-format worktables of gantry CNC milling machines represent a key advantage. They handle complex, large-scale workpieces while meeting precision requirements.
2. High-Precision Machining: For components demanding extreme accuracy, such as aerospace parts or automotive engine components, the gantry CNC milling machine’s exceptional stability and precise control make it an ideal choice.
3. Batch Production: In scenarios requiring efficient, high-precision batch production, the gantry CNC milling machine leverages the high automation of its CNC system to complete large-volume part processing in minimal time.
4. Complex-Shaped Part Machining: For parts featuring intricate geometries and diverse contour curves, the gantry CNC milling machine utilizes multi-axis interpolation to precisely execute complex machining tasks, particularly in mold manufacturing and aerospace applications.
Summary
As a vital piece of equipment in modern manufacturing, the gantry CNC milling machine is widely adopted across aerospace, automotive, mold making, heavy machinery, shipbuilding, and other industries due to its high precision, rigidity, and stability. Its robust machining capabilities make it an ideal choice for handling large, complex parts, excelling particularly in scenarios demanding high accuracy and efficiency. With continuous technological advancements, gantry CNC milling machines will continue to unlock greater potential, delivering increasingly precise and rapid machining solutions across diverse industries.
